Foaming molds for PUR thermal insulation

As an experienced system partner, we develop and manufacture customized foaming and insulation molds for the reliable production of components with integrated thermal insulation based on rigid polyurethane (PUR) foam.

Rigid PUR foam is a proven material for high-performance thermal insulation. Its excellent insulation properties, low weight, and wide range of applications make it the preferred choice for numerous industries and products.

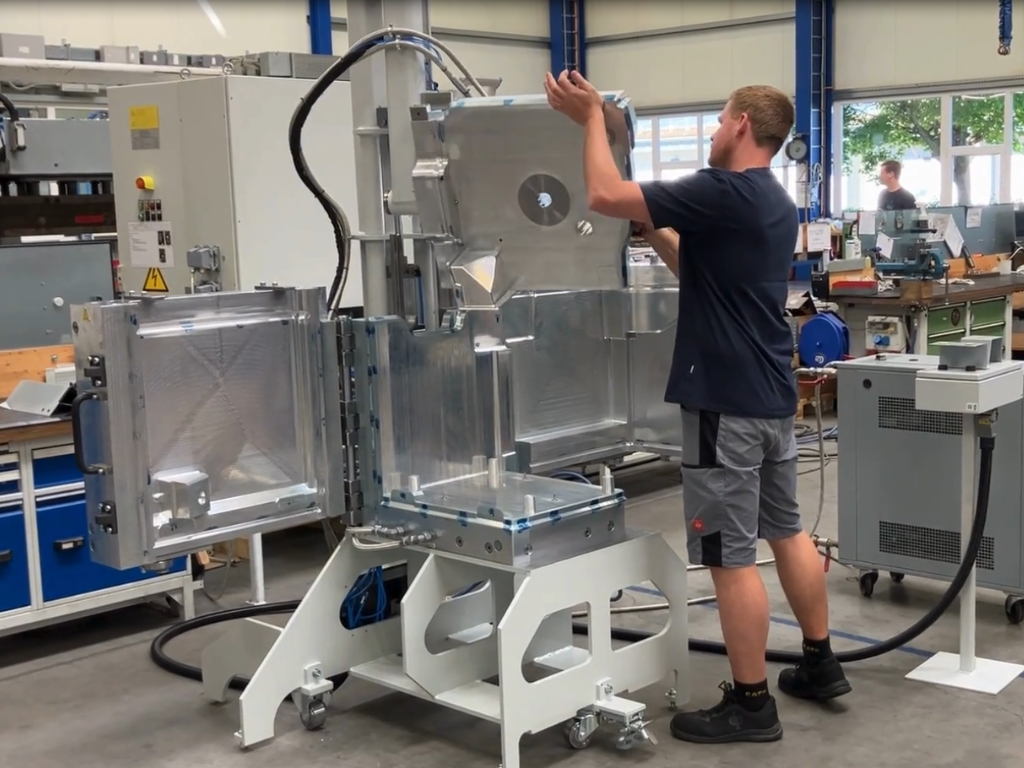

Our foaming molds enable the insulation of a wide variety of components, regardless of geometry or complexity. Depending on production volumes and process requirements, our solutions range from manual molds to fully automated systems for use in indexed rotary or conveyor-based production lines.

For thin-walled or easily deformable components, special support molds are used. These prevent deformation caused by the pressure of the expanding polyurethane foam and ensure high dimensional accuracy as well as consistent, reproducible quality.

Typical applications for PUR insulation include:

• Hot water storage tanks in various shapes and sizes
• Transport containers for temperature-sensitive goods such as blood supplies or vaccines
• Temperature-controlled laboratory equipment, e.g. centrifuges

Universal molds for flexible variant production

Universal molds enable the flexible production of different component variants using a common mold platform. Interchangeable inserts and adjustable functional areas allow fast changeovers with minimal setup effort. This reduces setup times and investment costs and enables cost-efficient production, especially for applications with a high variety of variants or medium production volumes.

Explosion-proof molds for pentane processing

To improve the insulation performance of rigid PUR foam, pentane is frequently used as a blowing agent during the foaming process. Pentane enables particularly fine foam structures with excellent thermal insulation properties, but it is highly flammable.

For these applications, we develop foaming molds in accordance with the requirements of the ATEX directive. These molds and systems are designed for the safe handling of flammable gases and are engineered in compliance with applicable explosion protection standards. We take all relevant safety aspects into account, from material-specific design and suitable ventilation and monitoring concepts through to safe commissioning of the equipment.

Technical expertise and reliable processes

Thanks to our many years of experience in tool, machine, and plant engineering, we provide durable and cost-efficient solutions tailored to your components, processes, and production volumes.

Already during the development phase, we take important factors such as cycle times, cleanability, maintenance, and tool lifetime into account.

A particular advantage for our customers: upon request, initial commissioning including wet trials can be carried out at our facility. This allows processes to be validated and optimally adjusted under real production conditions before the mold is transferred to series production.

We also continue to support you after commissioning — from process optimization and maintenance to service and the modification of existing molds to meet new requirements.

Are you planning a project involving thermal insulation with rigid polyurethane foam?

Our experts will be happy to support you in developing the right mold solution — from the initial idea to production start-up and beyond.

Contact our experts here.
